I have Toshiba 2100. Has no USB ports.
I currently have a 56K modem installed and dial-up service. How can I convert it or update it so that I can use DSL or wireless?
What type of apparatus/devices do I need and how much will it cost. It has 6gig HD space, but I would only use it for internet.
196M Ram
Does it have a RJ45 Ethernet Port or a PCMCIA slot?
It has one PC slot. The specs state there's a USB port, but I can't see one that's visible.Quote:
Originally Posted by SpywareDr
PCI Bus,
ISA Bus
PC Card slot (1)
It has an internal modem, 56K
According to this page:you have a "Toshiba Satellite 2100CDS"?
If so, the specifications on this page:state:If this is the case, looks like you have a lot of options available. For example:If you're looking for "wired" (RJ45), I'd go with one of these:Quote:
EXPANSION SLOTS (All models)
Two Stacked PC Card Slots Yes: Holds two - 5mm PC Cards Type II or one - 10.5mm PC Card Type III.
Support Standards Yes: Supports 32-bit, 3.3V PC CardBus cards and 16-bit, 5.0V PC card standards
on the left hand side there is a slot. On the right hand side, there's a CD ROM, no PC card slot. I see a floppy opening in the front.
Do I need the linksys software for the PC card wireless device? thanks, I'll order it right now, hope it works!
Also, should I keep this laptop charged? like my cell phone, keep it plugged in?

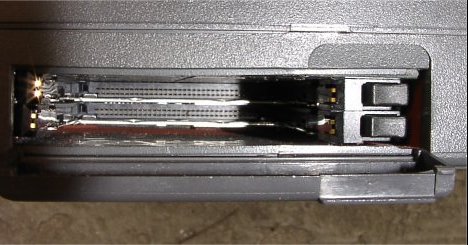

Does it look like any one of these?Quote:
Originally Posted by Sal_gal
http://www.resnet.cwu.edu/install_laptop/image001.gif
https://discussions.virtualdr.com/im.../2006/04/4.jpg
https://discussions.virtualdr.com/im.../2006/04/5.jpg
http://supcontent.gateway.com/suppor.../350173435.jpg
http://www.akihabaranews.com/review_pics/41/7.jpg
If so, it's a PCMCIA/PC Card slot.What PC card wireless device? You already have one?Quote:
Originally Posted by Sal_gal
Depends on the type of battery, NiCad, Lithium Ion, etc.Quote:
Originally Posted by Sal_gal
I have to read the specs to see what type of battery.
Do you already have a working wired or wireless network PC Card that fits into that PC Card slot?
Not that I know of. I just bought this laptop about 2 years ago and never ever used it. I'm just getting around to traveling with it.
The PC card is empty, nothing in it.
I have a PCMCIA modem/network card I used on my last laptop for connecting to the network I cant find it right now Im in the middle of packing.I think it is a type III if memory serves but you should be able to get one relativly cheap.
Something similar to this Xircom RealPort Ethernet 10/100 + Modem 56 Network / Modem Combo (XEM5600) at under $20 or you can get just the network PCMCIA card without the modem.
How do I know if it's a PCI-II-III?
Or are they all the same? This is my first time with a laptop.
The battery: Li-Ion Graphics
Battery life: full power 2 hrs.
Do I keep it charged?
The reason I was asking is because you had mentioned:which I interpreted to mean you already had a Linksys Wireless PC Card.Quote:
Originally Posted by Sal_gal
Anyway ... :)
You can purchase High-speed Internet service (broadband) from your local telephone (for DSL) or cable company. Depending upon what type of broadband service you order, you must purchase or rent either a DSL or cable modem. (Or, you could purchase a modem from your local electronics retailer or e-retail store. Linksys also offers a gateway router which is an all-in-one solution that combines the functions of a router with a cable or DSL modem so that two separate devices are not required).
Assuming you ordered the standard DSL with modem service from your phone company, you should now have a modem box that connects via a telephone wire to your existing telephone service's RJ11 jack in the wall. Another RJ45 Ethernet port on this modem lets you connect the modem to your computer via a standard Ethernet CAT5 cable to the RJ45 ethernet jack on the back of your desktop computer . . . and you would now have wired broadband access to the internet.
However, if you want wireless access, unplug that CAT5 cable from the back of the computer and insert it into a wireless router instead. Of course now you'd need wireless adapters for all your computers in order to talk to this wireless router.
One of the wireless options available for laptops is a wireless (network) PC (PCMCIA) Card adapter.
For the wireless router, I'd recommend the Linksys Wireless-G Broadband Router with SpeedBooster.
For the wireless adapter for your notebook, I'd recommend the Linksys Wireless-G Notebook Adapter with SpeedBooster
Note: With this router you could also keep up to four desktop computers 'wired', and at the same time use its 'wireless' function for your laptop(s).
[QUOTE=SpywareDr]The reason I was asking is because you had mentioned:which I interpreted to mean you already had a Linksys Wireless PC Card.
One of the wireless options available for laptops is a wireless (network) PC (PCMCIA) Card adapter.
[QUOTE]
This is too advance for me. Anyway, It don't have ethernet card; no USB port; no RJ45 connection for ethernet cable connection.
If the PC card will make it wireless I'll go ahead and buy it.I just need to know what do I need internally to make this thing wireless? Is the PC card enough? Thanks much.
I have a telephone cable /retractable laptop cord that will connect to the modem on the side.
You can purchase an Ethernet card (with RJ45 jack) that plugs into your PC Card slot.
You can also purchase a Wireless Ethernet card that plugs into your PC Card slot.
There is a wide range of various products available that plug into a PC Card slot. And, almost all laptops have a PC (PCMCIA) Card slot.
http://webopedia.com/TERM/P/PCMCIA.html
--
4 steps to set up your home wireless network
http://www.microsoft.com/athome/more...lesssetup.mspx
The PCMCIA 10/100 Lan with the RJ45 jack... Hmmm....I might order extra one for wireless connection; what do you think?
